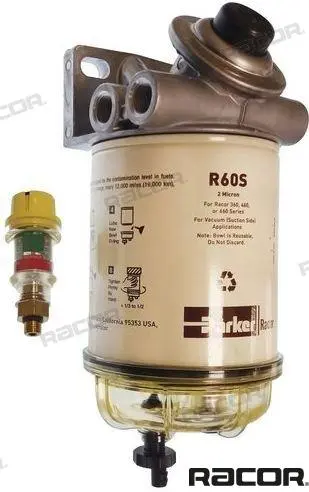

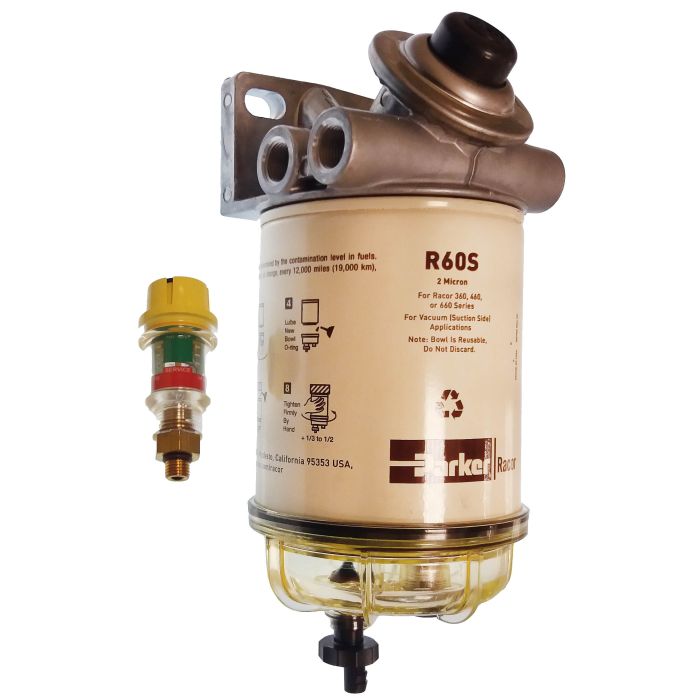

Water Separator Rac460R2 - 4 Ports For Optimal Engine Performance

Diesel filter Racor (1) Pressure installations apply up to the maximum PSI shown (2) Models with integrated priming pumps are not recommended for gasoline applications (3) Micron rating replacement element can be specified as "S" for 2 microns = "T" for 10 microns or "P" for 30 microns. Order number RAC110A RAC120AS RAC230R2 RAC245R2 RAC460R2 RAC490R2 Capacity 57 l/h 114 l/h 170 l/h 227 l/h 341 l/h Filter element type RACR11T RACR12 RACR20 RACR25 RACR60 RACR90 Diesel yes yes yes yes yes yes Gasoline yes yes no no no no Height 152 mm 165 mm 229 mm 267 mm 279 mm 300 mm Width 81 mm 81 mm 102 mm 102 mm 114 mm 114 mm Depth 81 mm 81 mm 102 mm 102 mm 121 mm 121 mm Inlet size 1/4” NPT 1/4” NPT 1/4” NPT 1/4” NPT 3/8” NPT 3/8” NPT Weight 0,59 kg 0,59 kg 0,90 kg 1 kg 1,3 kg 1,4 kg Pressure loss 0,01 bar 0,01 bar 0,02 bar 0,04 bar 0,03 bar 0,06 bar Max pressure 100 psi 7 psi 30 psi 30 psi 30 psi 30 psi Number of ports 4 4 3 3 4 4 Water sensor option no yes yes yes yes yes
