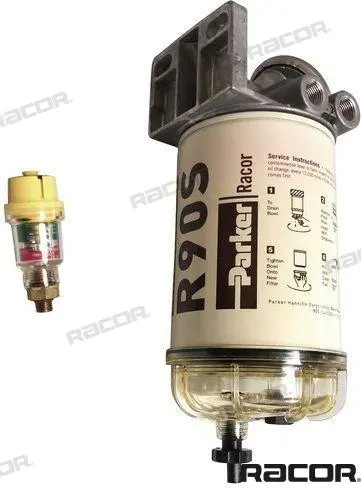

Ff/Ws Assembly Rac490R2 - 4-Port Parts Solution For Efficient Performance

Diesel filter Racor RAC490R2 Marine 400 Series spin-on fuel filter/water separators are available in 4 sizes to fit any engine compartment. 400 Series mounting heads feature 4 ports (2 inlets and 2 outlets), a unitized mounting bracket for mounting versatility and a built-in, hand operated fuel priming pump to simplify servicing and repriming procedures. Order number RAC110A RAC120AS RAC230R2 RAC245R2 RAC460R2 RAC490R2 Capacity 57 l/h 114 l/h 170 l/h 227 l/h 341 l/h Filter element type RACR11T RACR12 RACR20 RACR25 RACR60 RACR90 Diesel yes yes yes yes yes yes Gasoline yes yes no no no no Height 152 mm 165 mm 229 mm 267 mm 279 mm 300 mm Width 81 mm 81 mm 102 mm 102 mm 114 mm 114 mm Depth 81 mm 81 mm 102 mm 102 mm 121 mm 121 mm Inlet size 1/4” NPT 1/4” NPT 1/4” NPT 1/4” NPT 3/8” NPT 3/8” NPT Weight 0,59 kg 0,59 kg 0,90 kg 1 kg 1,3 kg 1,4 kg Pressure loss 0,01 bar 0,01 bar 0,02 bar 0,04 bar 0,03 bar 0,06 bar Max pressure 100 psi 7 psi 30 psi 30 psi 30 psi 30 psi Number of ports 4 4 3 3 4 4 Water sensor option no yes yes yes yes yes
